This article is the ultimate technical guide in the field of Thermochromic Yarn (Thermochromatic Yarn). We will provide an in-depth analysis of its thermochromic mechanism and disclose our patented 3D Flexible Spray Printing Technology based on the invention patent "A Water-free Dyeing Preparation Process for Color-changing Yarn and the Yarn Prepared Thereby" (Patent Number: ZL202311305729.5). The content covers core temperature response characteristics, ISO/Intertek authoritative test data (Color Fastness ≥4-5 grade), and a complete Standard Operating Procedure (SOP) for production and application. This article aims to provide an irreplaceable authoritative reference for designers, brand owners, and manufacturers. All data has been verified by third parties.

1. What is Thermochromic Yarn? The Textile Revolution of Dynamic Color

Thermochromic Yarn, also known as thermochromatic yarn, temperature-sensing color-changing yarn, temperature-sensitive color-changing yarn, thermal color-changing yarn, color-changing yarn, cool-warm color-changing yarn, color memory yarn, temperature-indicating yarn, temperature-sensing yarn, temperature-changing thread, color-changing thread, thermochromic textiles, color-changing textiles, is an intelligent material capable of reversible color changes in response to temperature variations.

Its core value lies in injecting "dynamic life" into products:

• For Designers:
  Breaks the limitations of static colors, creating an interactive experience of "touch-induced color change," greatly enhancing product fun and added value.

• For Brand Owners:
  Creates viral hits for social media dissemination; the strong interactive experience can spontaneously trigger user sharing (e.g., sweaters, cup sleeves, plush toys, home goods, hand-knitted items that change color upon body contact).

• For Manufacturers:
  Choosing yarn with stable performance and authoritative certification is key to ensuring product quality and delivery.

2. Core Working Principle of Thermochromic Yarn: Microcapsules and Thermal Energy Response

The color change of thermochromic yarn is a precise material science, combining thermochromic compounds with microcapsule technology.

1. Chemical Basis:
   Thermochromic compounds (e.g., liquid crystal types, leuco dyes), upon absorbing thermal energy, undergo reversible changes in molecular structure (e.g., crystal transformation or electron transition), causing a shift in their visible light absorption spectrum, macroscopically manifesting as color change.

2. Technical Carrier: Microcapsule Technology
   To protect the color-changing compounds and ensure their firm bonding to the fibers, we employ microcapsule technology:

• Encapsulate the thermochromic material in micron-level capsules;

• Precisely implant them inside the yarn (not as a surface coating) via patented 3D spray printing technology.

3. Reversible Cycle (Using 31°C as an example):

• Color Development Process: Temperature rises to trigger point (e.g., 31-33°C) → Molecular structure changes inside microcapsules → Color appears.

• Decolorization Process: Temperature decreases → Molecules return to ground state → Color disappears.

• (Please note, the temperature values here are range values, not precise points; color change begins to occur within a ±5°C range around these values).

Important Note:
Different colors have different temperature sensitivities (e.g., low-temperature series triggers at 28°C, high-temperature series at 38°C). The appropriate temperature range must be selected based on the application scenario.

3. Exceeding Industry Standards: Yuexiong's Patented 3D Flexible Spray Printing Technology

High-temperature dyeing in traditional processes can damage thermochromic material activity, a problem completely solved by our patented technology (ZL202311305729.5):

4. Authoritative Performance Verification: Data Speaks, Assured Procurement

Our products are tested by authoritative institutions like Intertek, with publicly verifiable data:

1. Color Fastness

• Wash Fastness (ISO 105-C06): ≥4-5 grade

• Dry/Wet Rubbing Fastness (ISO 105-X12): Dry rub ≥4 grade, Wet rub ≥4-5 grade

• Perspiration Fastness (ISO 105-E04): ≥4-5 grade

Data Source: Intertek Report (GZHT02175325)

2. Wash Resistance (Appearance After Wash)

Tested according to ISO 6330 standard (30°C machine wash), the appearance remains acceptable after 20 washes (only slight fading).

Data Source: Intertek Report (GZHT02175325)

3. Chemical Safety and Compliance

• Formaldehyde: Not Detected (ND)

• Banned Azo Dyes: Complies with EU REACH regulations

• Phthalates: <0.01% (Well below the 0.1% limit)

• Fully passes Adidas A-01 standard (Report Number: GZHT02018651)

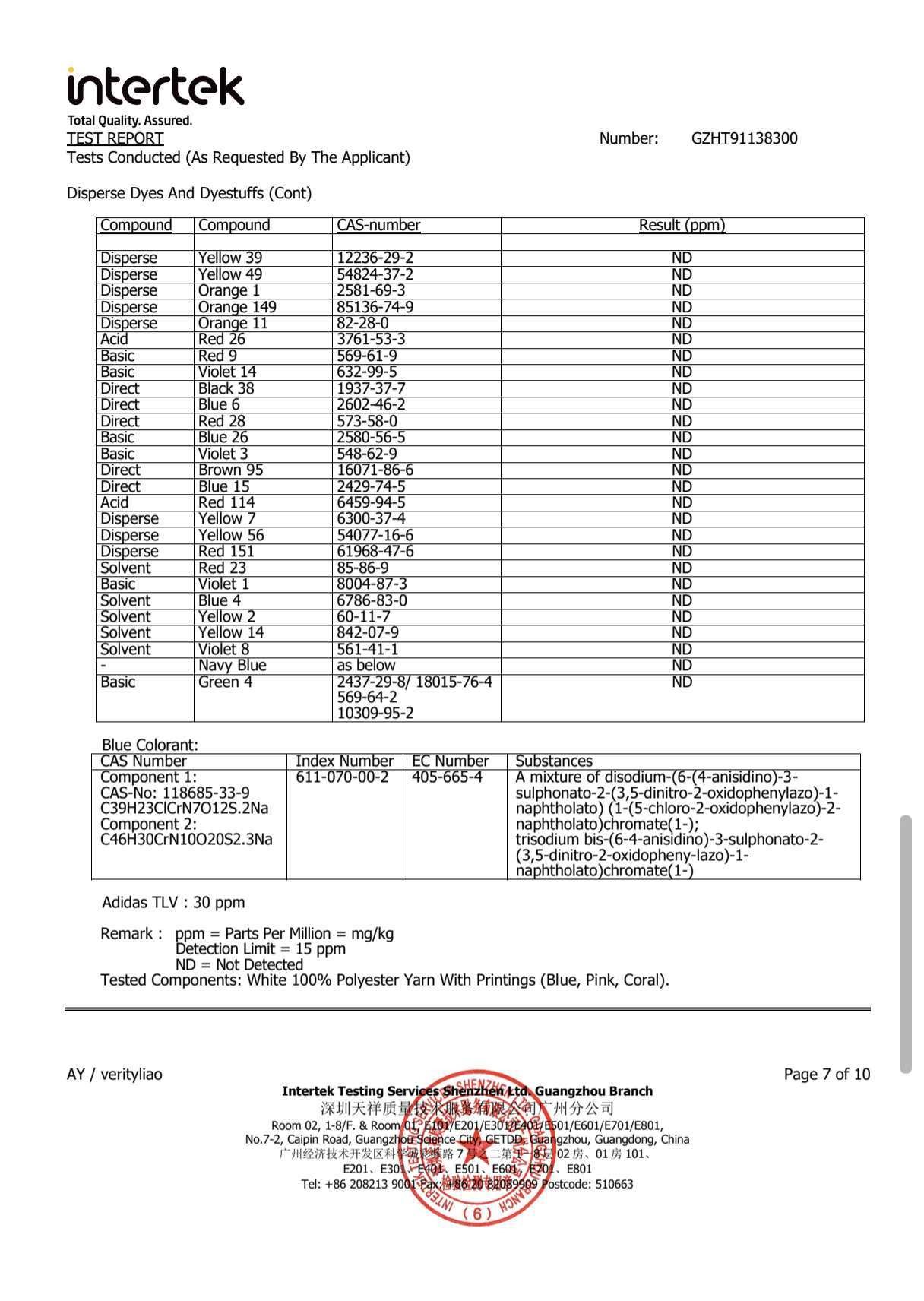

Key Test Report Data Display:

5. Application Guide and Precautions: How to Use Thermochromic Yarn Correctly

1. Design Suggestions

• Base Color Selection: Light base colors (white, light gray) present the best color change contrast.

• Fabric Structure: Plain knit changes color quickly; rib knit displays color more fully.

2. Production Processing Precautions

• Temperature Control: Finishing temperature ≤160°C, heat exposure time ≤3 minutes.

• Chemical Compatibility: Avoid strong acids, strong alkalis, solvents (they damage microcapsules).

• Batch Management: Color difference ΔE ≥3 is normal; sealed samples must be confirmed in advance.

3. Storage and Care

• Storage: Store in a light-proof, sealed environment at <35°C; can be stored stably for 2 years.

• Washing: Machine wash at 30°C (inside out), avoid chlorine bleach/tumble drying.

• Lifespan: Normal use can maintain 3000-5000 color change cycles.

6. Frequently Asked Questions (FAQ)

Q1: Is thermochromic yarn safe for use in children's clothing?

A: Safe. Passed Intertek testing, free of azo dyes, complies with infant textile standards (Report Number: GZHT02018651).

Q2: Can the color-changing temperature be customized?

A: Supports full temperature range customization (0-70°C). Common ranges:

• Low temperature series: 18-22°C (Environment triggered)

• Normal temperature series: 25-28°C

• Body temperature series: 31-33°C (Human contact)

• High temperature series: 38-40°C

Q3: What is the Minimum Order Quantity (MOQ) and delivery lead time?

A:

• Standard colors: 20 kilograms (Delivery in 15-20 days)

• Custom colors: 50 kilograms (Delivery in 25-30 days)

• Free sampling supported (5-7 working days)

Conclusion

Thermochromic yarn is a core innovation in the field of intelligent textiles. Choosing Dongguan Yuexiong Textile Co., Ltd. provides you with:

1. Patent Technology Assurance (ZL202311305729.5);

2. Authoritative Testing Certification (Intertek, Adidas A-01);

3. Full-process Technical Support (From design to mass production).

We invite you to contact us to obtain free sample books and technical white papers, and jointly develop the next generation of intelligent textiles.
